Specifications

Preliminary
SPECIFICATIONS
Sedimento Erythrocyte Sedimentation analyzer


Based on extensive testing and measuring several parameters a preliminary list of specifications is provided.
For more information send or fill-in

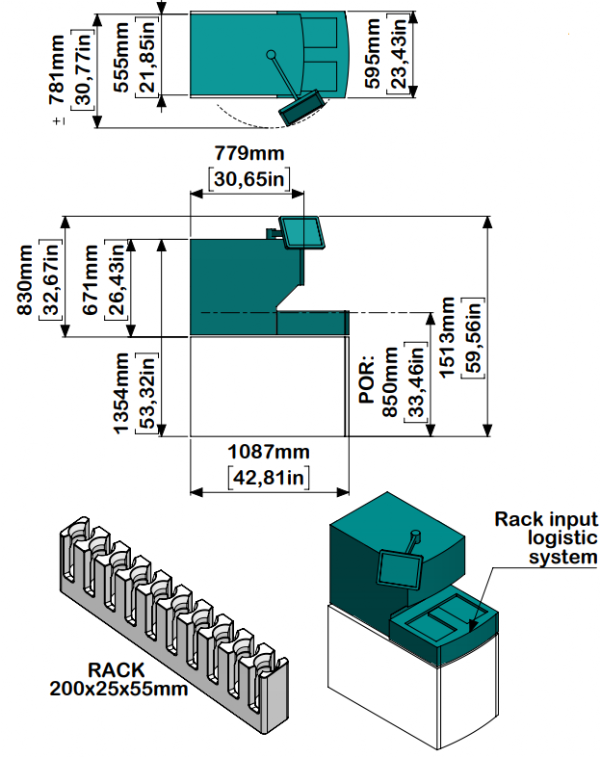

Overall dimensions
Footprint (width x lenth)
555mm x 1087mm
21.8 in x 42.8 in
Height without cabinet
             incl. cabinet
830 mm ~ 32.7 in
1513 mm ~ 59.6 in
Weight
Analyser (excl. reagents)
Analyser+XYZ system
Analyser+XYZ+Rack unit
Analyser+XYZ+Rack unit+Cabinet

39.5 kg ~ 87 lbs
44.5 kg ~ 98.1 lbs
58.5 kg ~ 129 lbs
89.0 kg ~ 196.2 lbs
Mains
Voltage
Power consumpion standby
                                     maximum

115 - 230V, 50-60Hz
55VA
500 VA
Analyser
Working priciple
Westergren (ICSH)
Sample rate
360/hr (1/2 hr mode)
Sample Tube feed
Manual
Tube racks
Track
Sample tube
13 x 75mm, EDTA
Reagent containers inside analyzer
Diluent (2 x 3L)
Desinfective agent (1x 3L)
Reagent containers
Blind connect
Ready to use
Bag in box
